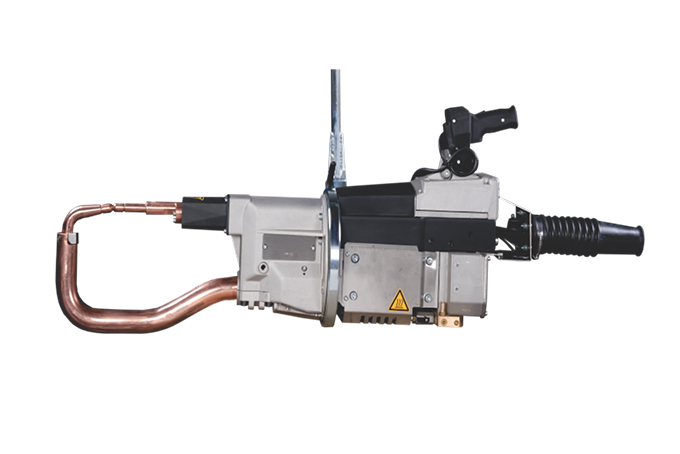

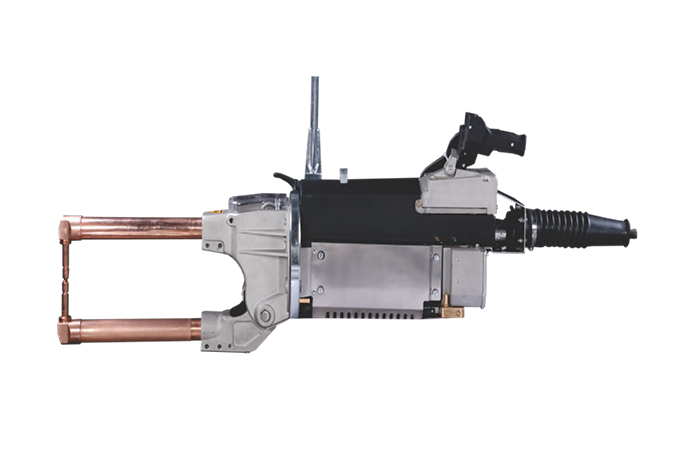

Equipped with IS0 standard transformers, these guns form the middle range of the available variety. While maintaining the transformer standards compatible with international IS0 specifications, every attempt is made to make the machine compact and light weight.
Superior degree of operator comfort is ensured for fatigue free continuous operation, resulting in higher production and shorter pay back periods.
|
Inbuild Control
|
|
3024
|
3124 D
|
3126 D
|
3154
|
3156
|
3160
|
3166
|
|---|---|---|---|---|---|---|---|---|
|
Off Board Control
|
-
|
3025
|
3125 D
|
3127 D
|
3155
|
3157
|
3161
|
3167
|
|
Type
|
|
C
|
X
|
X
|
X
|
X
|
X
|
X
|
|
KVA
|
36
|
36
|
36
|
53
|
53
|
60
|
75
|
|
|
Maximum Welding Power
|
KVA
|
110
|
110
|
147
|
147
|
192
|
260
|
|
|
Maximum Short Circuit current
|
KA
|
20
|
22
|
22
|
26
|
26
|
30
|
32.5
|
|
Thermal current at 100%
|
A
|
4000
|
4000
|
4000
|
5300
|
5300
|
5300
|
5300
|
|
No load Secondary Voltage
|
V
|
5.6
|
6.3
|
6.3
|
7.1
|
7.1
|
8
|
10
|
|
Mains Voltage
|
V
|
400
|
400
|
400
|
400
|
400
|
400
|
400
|
|
Delayed Fuses
|
A
|
63
|
63
|
63
|
100
|
100
|
125
|
150
|
|
Arms Spacing
|
MM
|
140
|
205
|
265
|
219
|
312
|
219
|
219
|
|
Max Arms Lengths
|
MM
|
|
800
|
800
|
1030
|
1030
|
1030
|
1030
|
|
Water Cooling Rate
|
LPM
|
6
|
6
|
6
|
8
|
8
|
8
|
8
|
|
Water Pressure
|
Bar
|
2.5
|
2.5
|
2.5
|
2.5
|
2.5
|
2.5
|
2.5
|
|
Air Pressure
|
Bar
|
5
|
5
|
5
|
5
|
5
|
5
|
5
|
|
Air Consumption for 1000 spots at 5 bar
|
Nm3
|
12
|
14
|
14
|
11
|
11
|
11
|
11
|
|
Dia of Gyro Suspension
|
mm
|
244
|
244
|
244
|
294
|
294
|
294
|
294
|
|
Force at Tip @ 5 Bar
|
||||||||
|
With Shortest arms 200mm
|
Kg
|
300
|
550
|
550
|
600
|
600
|
600
|
600
|
|
With Medium arms 500mm
|
Kg
|
300
|
266
|
266
|
314
|
314
|
314
|
314
|
|
With Long arms 800mm
|
300
|
170
|
170
|
204
|
204
|
204
|
204
|
204
|
|
Net weight including Cable/ Hoses/ Gyro Suspension and without arms
|
Kg
|
51
|
55
|
56
|
78
|
79
|
82
|
87
|
TE470 are microprocessor welding control unit for suspended resistance welding guns. These control units include specific functions to be used when working with suspended welding guns, such as the double stroke control, and a function checking the efficiency of the safety devices which can be eventually installed on the handle of the machine. It is possible to store 63 different welding programs, 2 programs can be recalled by an external device on the handle. Each program is formed by 18 programmable parameters which describe the working cycle. Besides the simple 4 times cycle, the control units enables to carry out welding processes with pre-weld current, slopes, pulses and post-weld current. The control units can be programmed for working under two different operating modes: standard one and constant current. An integrated ammeter allows to know the welding current used and to set maximum and minimum limits.
This mode is also called ADAPTIVE. In fact, it is able to detect possible abnormal conditions like impurities on sheets, incorrect overlapping, electrodes wear etc., and to dynamically change and compensate parameters during the welding process and try achieving always the same final welding results. This “real time” compensation is carried out by extending or shortening the welding time up to a maximum limit set by the operator. The control unit also compensates the welding current, in this casew for avoiding the projection and the expulsion of molten material.
